Tabbed Color Touchscreen allows you to quickly change settings and monitor all functions.

Continuously updated and displayed is the tuned frequency, RSSI, deviation, and Carrier status

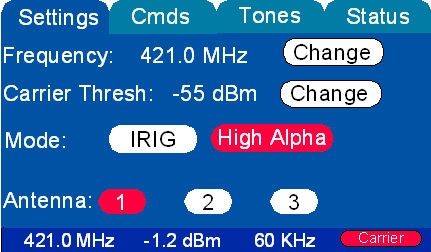

SETTINGS:

Set Frequency

Set Carrier Threshold level

Select Mode

Select Antenna Input

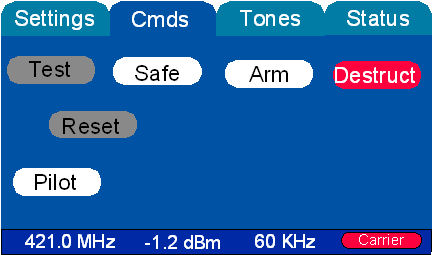

COMMANDS

Tri-color buttons to quickly show commands that have been defined, not defined, or currently being received.

TONES:

Display is used to select individual tones and display which tones are currently being received.

Features

• Color Touchscreen with tabbed pages

• Synthesized LO Frequency Selection

• User Adjustable Sensitivity Threshold

• State of the Art DSP Decoder Technology

• Local and UDP\IP Remote Control and Status

• High Accuracy Peak Deviation / RF Input Power Reporting

• Large Touch screen LCD Displaying Frequency, RF Power & Deviation and more.

• Frequency Range 370 to 450MHz in 100KHz Steps

• Frequency Stability +0.002% maximum over 24 hours

• Noise Figure 6dBc maximum

• Spurious & Image Rejection -60dBc maximum

• LO Reradiation -60dBm maximum

• RF Input Impedance 50 Ohm nominal

• VSWR Input 2:1 maximum

• RF input dynamic range -104 to +13dBm

• Relative Signal Strength indication Monotonic, via front panel LCD and RS-232 +2dB

• IF -3dB Bandwidth 500+ 150KHz

• IF -60dB Bandwidth 1500+ 50KHz

• Operating temperature range 0 to +50oC

• Operating Relative Humidity 0 to 95%

• Operating Altitude 0 to 10,000 Feet

• Calendar lifetime 10 Years minimum

• Operational lifetime 20,000 hours minimum

• MTBF 2,0000 hours minimum

• MTTR (Mean Time To Repairs 1 hour maximum down to card level)

Decoder Characteristics

• Number of IRIG Tones :  20 Channels

• -2dB Tone Bandwidth +1% maximum

• -20dB Tone Bandwidth +4% maximum

• Simultaneous Tone detection 1 to 6 Tones

• Decoder Carrier Deviation +15 to +30KHz for each tone

• Decoder Response Time 10 milliseconds maximum

Interface Characteristics

• Functions Carrier Presence Reporting

• Active Tone(s) Reporting

• Carrier Deviation Reporting

• Signal Strength Reporting

• Frequency Tune/Reporting

• Self Test Reporting

• Deviation Reporting +7% of Received Carrier Deviation @+13 to -85dBm

• +12.5% of Received Carrier Deviation @-86 to -90dBm

• +17% of Received Carrier Deviation @-91 to -95dBm

• Signal Strength Reporting Accurate to +2.0dBm from +13 to -95dBm at the RF Input Connector

Options (Partial list, call factory for complete details)

• Remote Communications Protocol Options: RS-232,  UDP/IP (Ethernet)

• Decoder output rear panel; SPST 250mA contact closure to common (NO)

• Secure and IRIG

• Tones and / or Messages in IRIG, Secure, High Alpha, and EFTS formats.

• Input Power:  110VAC, +28VDC

Other models: Click on description to open datasheet in PDF format.

• IRIG and Secure with Messaging and KYK Translator : RX-1001

• IRIG and Secure Tones : RX-1003
