WV
Communications is proud to announce the

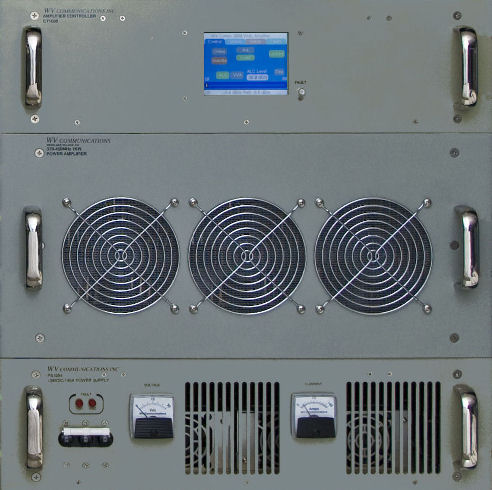

PA1027 series of 1000 Watt UHF High Power Amplifiers.

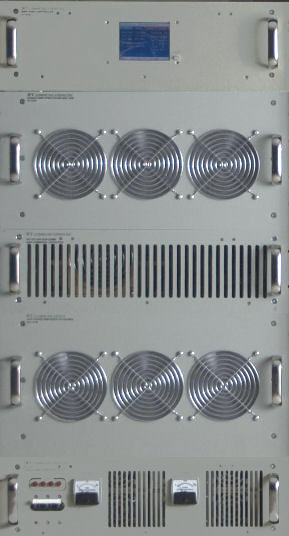

The amplifier can be combined with
others to create system that delivery 2000 Watts or more.
They incorporate
a CPU card in each driver and amplifier module plus a CPU card
dedicated to monitoring each 1000 Watt amplifier drawer. The CPU
card monitors module and drawer parameters and provides serial
communication between the modules and the system CPU.
This capability
allows you, with one command via the Ethernet UDP port, to monitor
the following:
Total
Forward Power
Total
Reflected Power
Input Power
Output Power
For Each Amplifier Module
Output Power
For Each Driver Module
Supply
Current For Each RF Power Device
System Gain
Setting
Power Supply
Output Voltage
Power Supply
Output Current
All UDP queries
return a UNIX timestamp (number of seconds since Midnight January 1,
1970 followed by the residual microseconds).
With another
command you can query the supply current, detected output power, and
temperature of an individual module.
The fault
history (last fifty faults) is also available. The fault along with
the timestamp can be remotely queried or viewed on the LCD screen.

Sample screens shown above; the actual screen may vary due to the
selected model and options.
Other
configurations are available. The system can be tailored to
fit your specific requirements. Please contact us to discuss your
current and future needs.
Specification Sheet Downloads
1000 Watt
Amplifier
Controller for a 1000 Watt
System
Power Supply
for a 1000 Watt System
Controller
for a 2000 Watt System
Power Supply for a 2000 Watt
System |
