Tabbed Color Touchscreen allows you to quickly change settings and monitor all functions.

Continuously displayed and updated is the tuned frequency, actual output power, and total deviation.

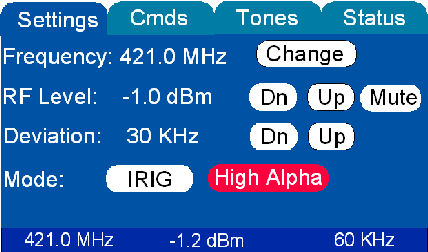

SETTINGS:

Set Frequency

Set RF output level

Set deviation per tone

Select mode

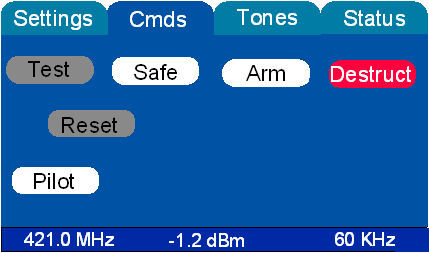

COMMANDS

Tri-color buttons to quickly show commands that have been defined, not defined, or currently being transmitted

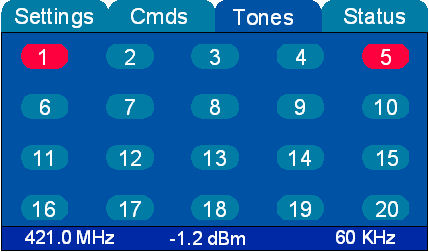

TONES:

Display is used to select individual tones and display which tones are currently being transmitted.

Features

• Tone Outputs: IRIG

• Main functions adjustable via Touch screen or UDP\IP (Ethernet)

• Tone stability ±0.01%

• RF output power adjustable from -5 dBm to +10 dBm in 0.5dB steps

• Carrier stability within ±0.005% maximum

• Frequency range 370 MHz to 450 MHz

• 100 KHz frequency steps

Options  (Partial list, call factory for complete details)

• Tone Outputs: IRIG, Secure, High Alpha, and EFTS with Messaging (any combination)

• Output tones and / or Command Messages

• Input Power Options available (110VAC, +28VDC)

• Remote Communications Protocol Options: RS-232,  UDP/IP (Ethernet)

• Frequencdy Range Options available 370 MHz to 550 MHz

Other models: Click on description to open datasheet in PDF format.

• IRIG and Secure Messaging and KYK translator : EX1001

• IRIG and Secure Tones : EX1000
