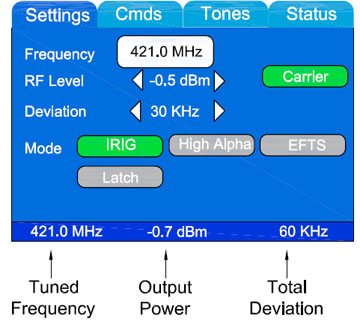

Tabbed Color Touchscreen allows you to quickly change settings and monitor all functions.

Continuously displayed and updated is the tuned frequency, actual output power, and total deviation.

SETTINGS:

Set Frequency

Set RF output level

Set deviation per tone

Select IRIG, High Alpha, or EFTS mode

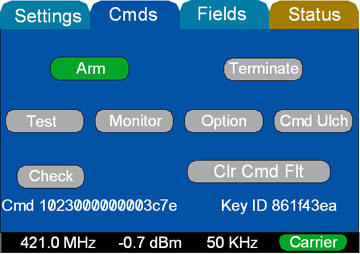

COMMANDS

Tri-color buttons to quickly show commands that have been defined, not defined, or currently being transmitted

TONES:

Display is used to select individual tones and display which tones are currently being transmitted.

Features

• Select encoding mode (EFTS, High Alhpa, or IRIG) by a single remote command or push of a soft key button

• Main functions adjustable via Touch screen or UDP\IP (Ethernet)

• Tone stability ±0.01%

• RF output power adjustable from -5 dBm to +10 dBm in 0.5dB steps

• Carrier stability within ±0.001% maximum

• Frequency range 370 MHz to 450 MHz

• 100 KHz frequency steps

• Remote Communications Protocol : RS-232,  UDP/IP (Ethernet)

Options  (Partial list, call factory for complete details)

• Input Power Options available (110VAC, +28VDC)

• Frequency Range Options available 370 MHz to 550 MHz

Datasheet in PDF format.
