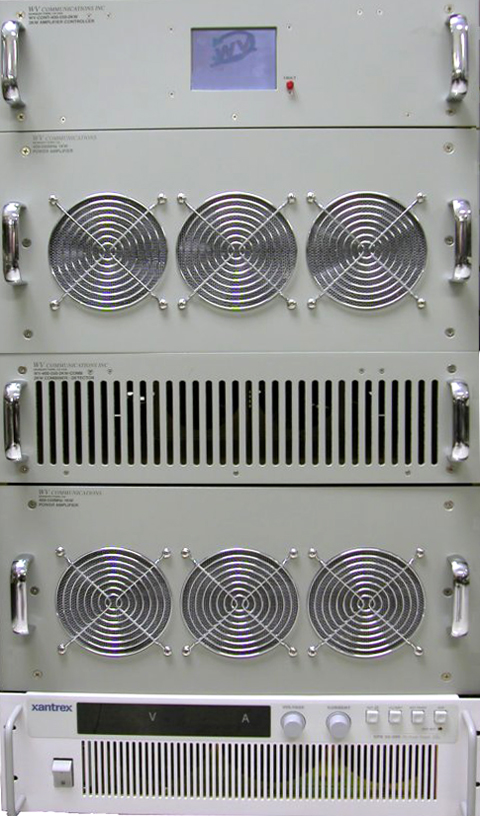

Cool running and dependable Flight Termination System Amplifier.

Features

• Frequency Range: 370 to 550MHz

• RF Output Power: 2KW / 4KW (depending on model)
  minimum at 1dB Compression

• RF Output Protection: Integral Output Isolator

• RF Input Power: 0dBm +0/-3dBm

• Maximum RF Input Power: +10dBm

• Small Signal Flatness: +1dB Maximum into 1.05:1 VSWR

• Input and Output Impedance: 50 Ohm nominal

• Input/Output Impedance: 2:1 maximum

• Spurious/ Harmonic Levels: -80dBc maximum

• Cooling: Forced air / Liquid cooling

• Operating temperature range: 0 to +50oC

• Over temperature Protection: Thermostat shut-off indication

• Operating Altitude: MSL to 70,000 Feet

• Chassis Depth: 27.5" nominal

• AC Input Power: 180-264VAC/ Single or 3 phase, 47-63Hz

• 2KW at 5 KVA Maximum, 4KW at 10 KVA Maximum

Power Options

• 2KW (P/N 050-50330)

• 4KW (P/N 040-50009)

Interface

• Protocol: RS-232 at 9,600 baud rate

• Data Format: No parity, 8 Data Bits, 1 Stop Bit, No Handshake

• Functions: Set Output Level

• Linear or ALC (Watt / dBm)

• Report Output Power in dBm or Watts

• VSWR Alarm

• Standby / Online

• BIT
