400-550-500W-230

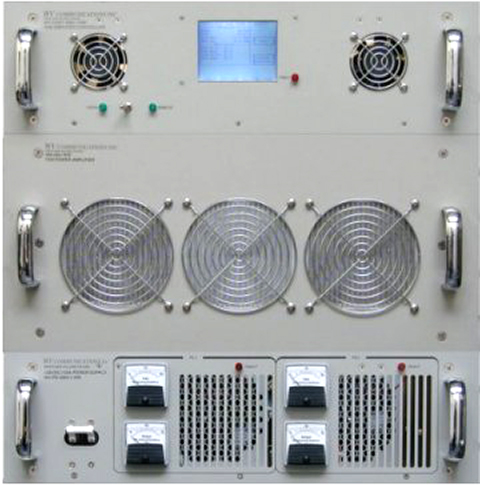

400-450-1KW-HW  (shown above)

Cool running and dependable Flight Termination System Amplifier.

Features

• Frequency Range: 370 to 550MHz

• RF Output Power: 0.5KW / 1KW (depending on model)
  minimum at 1dB Compression

• RF Output Protection: Integral Output Isolator

• RF Input Power: 0dBm +0/-3dBm

• Maximum RF Input Power: +10dBm

• Small Signal Flatness: +1dB Maximum into 1.05:1 VSWR

• Input and Output Impedance: 50 Ohm nominal

• Input/Output Impedance: 2:1 maximum

• Spurious/ Harmonic Levels: -80dBc maximum

• Cooling: Forced air / Liquid cooling

• Operating temperature range: 0 to +50oC

• Over temperature Protection: Thermostat shut-off indication

• Operating Altitude: MSL to 70,000 Feet

• Chassis Depth: 27.5" nominal

• AC Input Power: 180-264/ Single or 3 phase at 2.5 KVA Max., 47-63Hz

Power Options

• 0.5KW (Model number: 400-550-500W-230)

• 1KW    (Model number: 400-450-1KW-HW)

Interface

• Protocol: RS-232 at 9,600 baud rate

• Data Format: No parity, 8 Data Bits, 1 Stop Bit, No Handshake

• Functions: Set Output Level

• Linear or ALC (Watt / dBm)

• Report Output Power in dBm or Watts

• VSWR Alarm

• Standby / Online

• BIT

Downloads

      0.5KW Model - Spec Sheet

      1KW Model - Spec Sheet
