RF Characteristics

• 3 Independent Channels

• IF Input Frequency:                      6 MHz and 70 +/- 12.5 MHz

• Output Frequency Range:            1-3000 MHz

• Input Power:                                0 dBm Maximum

• Output Flatness:                          +/- 0.5 dB Minimum

• Frequency Steps:                          1.00 MHz

• Conversion Gain:                           20 dB

• Gain Adjustment:                           20 dB in 1 dB steps

• Noise Figure:                                  20 dB Minimum

• Tuning Time:                                  100uSec Minimum (High Speed Bus Mode
                                                                            including Digital Command)

• External 10.00 MHz Reference:       Auto switch to internal 10.00 MHz when the External
                                                         10.00 MHz reference is not present

• External 10.00 MHz Level:              0 dBm +/-3 dB / 50 Ohm

Communications Protocol

• RS-232

• High Speed 10MB/Sec

Downloads

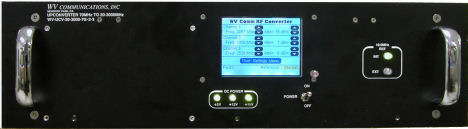

          WV-UCV-20-3000-70/-2-3 Three Channel Upconverter
