RF Characteristics

• 2 Independent Channels

• IF Input Frequency:               70 +/- 12.5 MHz

• Output Frequency Range:     1-3000 MHz

• Input Power:                         0 dBm Maximum

• Output Flatness:                   +/- 0.5 dB Maximum

• Frequency Steps:                  1.00 MHz

• Conversion Gain:                    40 dB

• Gain Adjustment:                   60 dB in 1 dB steps

• Noise Figure:                          20 dB Maximum

• Tuning Time:                           100uSec Minimum (High Speed Bus Mode
                                                                            including Digital Command)

• External 10.00 MHz Reference:       Auto switch to internal 10.00 MHz when the External
                                                         10.00 MHz reference is not present

• External 10.00 MHz Level:              0 dBm +/-3 dB / 50 Ohm

Communications Protocol

• Options include RS-422 and RS-232

• High Speed 10MB/Sec

Downloads

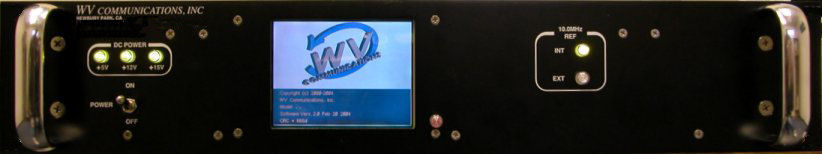

          WV-UCV-1-3000-70-1 Dual Upconverter
