• Frequency Range: See Options Below

• RF Output Power: 500 Watts Minimum at 1 dB compression

• RF Output Level Adjust:  20dB in 0.1 dB steps

• RF Input Power: 0 dBm nominal, +2 dB

• Input/Output VSWR: 1.5:1 maximum (Ref 50 Ohms )

• Output Protection: No Oscillation, No Damage into infinite VSWR, at
  any Phase Angle (Isolator Protected)

• Noise Figure: 10 dB maximum

• Spurious Outputs: No greater than –65 dBC

Frequency Range Options

• 1625 - 1675 MHz

• 1750 - 1850 MHz

• 2025 - 2120 MHz

• Call for other options

Controls & Reporting

• Local control via color LCD touch screen

• Interface: RS232, RS422, or UDP (Ethernet)

• Control Signals: Output Power Adjust (0.1dB steps)

• Reported Signals: Forward and Reflected Power

Power Supply Characteristics

• AC Input Power: 108 - 264 VAC Single or Three Phase, 47 to 63 Hz, 1.5 KVA Maximum

Datasheet Downloads:

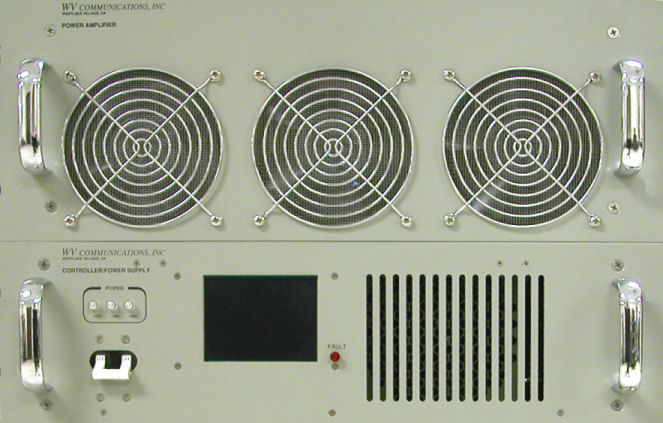

      SYS1004
