•  Frequency Range: 2025 to 2120 MHz
•  RF Output Power:  300 & 400 Watts minimum
•  RF Output Level Adjust: in 1 dB steps
•  RF Input Power: 0 dBm nominal, +2 dB maximum
•  Input/Output VSWR: 1.5:1 maximum (Ref 50W )
•  Output Protection: No Oscillation, No Damage into infinite VSWR, at any
   Phase Angle (Internal Isolator Protected)
•  Noise Figure: 10 dB maximum
•  Spurious Outputs: No greater than –60 dBC, except Harmonics, of 20 dBC
   maximum
•  Output Filter options available
•  Efficiency: 40% Typical

•  Interface:  RS232, RS422 or RS485
•  Control Signals: Output Power Adjust 1 dB steps
•  Reported Signals: Forward and Reflected Power

•  AC Input Power: 230 VAC +10%, 47 to 63 Hz Single or 3 Phase
•  Control: Remote AC On/Off  via 24 volt 0.15 ampere signal
•  Safety: Door Interlock Switch with Over-Ride
•  AC Protection:  Fuses for each Power Supply
•  Cables: DC Interconnect Cables supplied with the unit to 10’ long

•  Indoor: 19" Rack Mounted

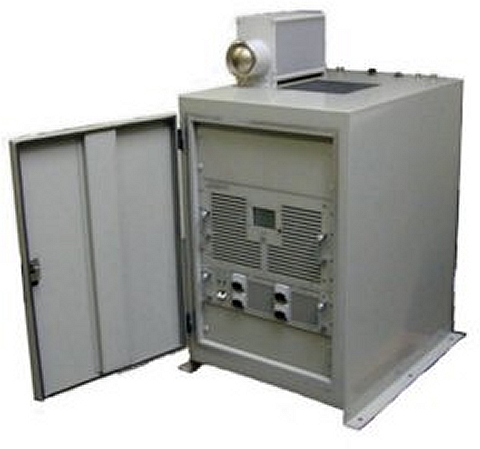

•  Outdoor: NEMA 4 Weather Sealed Conduction/Air-cooled Enclosure
